Perkins Perkins diesel engine temperature, oil pressure, air pressure sensor
1 KRP1688 1 KRP1688 Temperature sensor
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 T401677 1 T401677 ELBOW
2 T401676 1 T401676 CLAMP
3 CH10285 1 CH10285 PLUG
4 T409314 1 T409314 SEAL – O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 KRP1688 1 KRP1688 TEMPERATURE SENSOR
4 KRP1699 1 KRP1699 OIL PRESSURE SENSOR KIT
7 T401655 1 T401655 ELBOW
8 T409314 1 T409314 SEAL – O RING
9 KRP1687 1 KRP1687 TEMPERATURE SENSOR
12 KRP1693 1 KRP1693 AIR PRESSURE SENSOR KIT
15 CH12642 1 CH12642 ADAPTOR
16 CH11880 1 CH11880 SEAL – O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 KRP1705 1 KRP1705 SPEED SENSOR
4 CH10136 1 CH10136 BOLT
5 CH11894 1 CH11894 WASHER
6 KRP1700 1 KRP1700 SPEED SENSOR
9 CH10136 2 CH10136 BOLT
10 CH11894 2 CH11894 WASHER

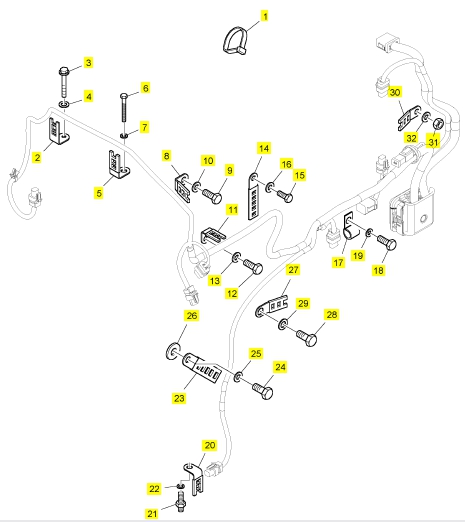

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH10054 13 CH10054 CABLE TIE
2 T401576 2 T401576 WIRING CLIP
3 CH12286 2 CH12286 BOLT
4 CH10303 2 CH10303 WASHER
5 CH10420 1 CH10420 WIRING CLIP
6 CH11814 1 CH11814 METRIC BOLT
7 CH10277 1 CH10277 WASHER
8 CH10072 1 CH10072 CLIP
9 CH12203 1 CH12203 BOLT
10 CH11819 1 CH11819 WASHER
11 CH10420 1 CH10420 WIRING CLIP
12 CH12203 1 CH12203 BOLT
13 CH11819 1 CH11819 WASHER
14 T401660 1 T401660 WIRING CLIP
15 CH12203 1 CH12203 BOLT
16 CH11819 1 CH11819 WASHER
17 T401662 1 T401662 WIRING CLIP
18 CH12203 1 CH12203 BOLT
19 CH11819 1 CH11819 WASHER
20 CH10420 1 CH10420 WIRING CLIP
21 CH12671 1 CH12671 STUD
22 CH10277 1 CH10277 WASHER
23 T401660 1 T401660 WIRING CLIP
24 CH11299 1 CH11299 BOLT
25 CH11819 1 CH11819 WASHER
26 T401297 1 T401297 WASHER
27 T401661 1 T401661 WIRING CLIP
28 CH10922 1 CH10922 BOLT
29 CH10099 1 CH10099 WASHER
30 T410794 1 T410794 WIRING CLIP
31 CH11865 1 CH11865 NUT
32 CH11819 1 CH11819 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 WIRING HARNESS
3 28170029 2 28170029 ELECTRICAL CONNECTOR
4 28170019 1 28170019 ELECTRICAL CONNECTOR
5 28170044 4 28170044 ELECTRICAL CONNECTOR
6 CH10054 2 CH10054 CABLE TIE
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 T401709 1 T401709 WIRING HARNESS
2 KRP1699 1 KRP1699 OIL PRESSURE SENSOR KIT
5 T409314 1 T409314 SEAL – O RING
6 T400689 1 T400689 ADAPTOR
7 T406205 1 T406205 SEAL – O RING
8 KRP1687 1 KRP1687 TEMPERATURE SENSOR
11 28170044 1 28170044 ELECTRICAL CONNECTOR
12 2900A011 2 2900A011 PIN
13 CH10420 1 CH10420 WIRING CLIP
14 CH10054 1 CH10054 CABLE TIE
15 T410794 1 T410794 WIRING CLIP
16 CH10054 1 CH10054 CABLE TIE
17 T410794 1 T410794 WIRING CLIP
18 CH12203 1 CH12203 BOLT
19 CH11819 1 CH11819 WASHER
20 CH10054 1 CH10054 CABLE TIE
