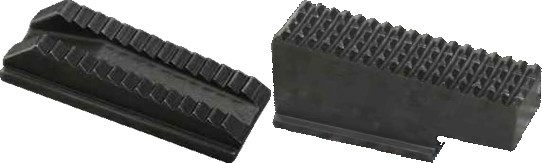

TEDA Power Tong Dies Tubing Tong Dies F/XY114/6YB XQ140/12Y Alloy steel 20CrMnTi Phosphating Black color APIK 7k std.

MANUAL TONG DIES Pyramid, Coarse, Plain, Blue Diamond tooth

We can supply those tong dies for BJ Type B, DB, B Extend/HT50, HT55, HT65 Manual Tong, Web Wilson AAX, H, Woolley Type Super A, B, B+V BV-55, BV-57, BV-65, BV-80, BJ Type SDD, C, F & LF Manual Tong, BJ Power Casing Tong( 4 ½”-13 3/8”), Woolley Type Super C, Eckel model 850, Web Wilson, B+V BV-25, BV-35, BV-100, Short Die for BJ Type B Manual Tong, BJ Drill Pipe Power Tong, Eckel Power Casing Tong, Farr Power Tongs, BJ Powermatic tong, Farr Power Tong, Weatherford 5 ½” & 7 /8”

Dimension: 1/2” x 1.1/4” x 5.7/8”, 1/2” x 1.1/4” x 5”, 1/2” x 1.1/4” x 3.7/8”, 3/8” x 1” x 3.7/8”

Part No.: 16402-2, 16402-6, 6416039, 4716, 627-185-1578, 16401-2, 16401-6, 16401-1, 16401, 6416020, 4631

103426, 4616, 627-185-1500, 24768-2, 101-251, 337-02-098, 6416012, 24768-8, 24768, 24770-2, 6473, 12-1003, 6400019

POWER TONG DIES Pyramid, Coarse, Plain, Blue Diamond tooth

BJ Drill Pipe Power Tong, RUSHI Drill Pipe Power Tong ZQ 203-100/125, TD Tubing Power Tong XQ89/3YB, XQ89/3YC, XY114/6YB, XQ140/12Y

Dimension: 1/2” x 1.1/4” x 3.7/8”, 7/16” x 1 ¼” x 3 1/16”, 1 3/16” x 1 ¼” x 3 1/2”

Part No.: 73-78, 89-114, 121-156, 89-141.5

DIES FOR POWER TONGS
Tong Type	Model	Pipe Size
BJ Drill Pipe Power Tong	1/2” x 1.1/4” x 3.7/8” Pyramid	/
RUSHI Drill Pipe Power Tong ZQ 203-100/125	7/16” x 1 ¼” x 3 1/16” Blue Diamond	/
RUSHI Drill Pipe Power Tong ZQ 203-100/125	1 3/16” x 1 ¼” x 3 1/2” Blue Diamond	/
TD Tubing Power Tong XQ89/3YB XQ89/3YC	Thin	89 ( 3 ½”)
	Middle-thick	73 ( 2 7/8”)
	Extra-thick	60 ( 2 3/8”)
TD Tubing Power Tong XY114/6YB	Big arc	89-141.5(3 ½”-5 ½”)
TD Tubing Power Tong XY114/6YB	Small arc	73-78(2 7/8”)
TD Tubing Power Tong XQ140/12Y	I	73-78(2 7/8”)
	II 3/8” x 1” x 3 7/16”	89-114(3 ½”-4 ½”)
	III	121-156(4 ¾”-6 1/8”)

Part No.: 73-78, 89-114, 121-156, 89-141.5

DIES FOR POWER TONGS
Tong Type	Model	Pipe Size
BJ Drill Pipe Power Tong	1/2” x 1.1/4” x 3.7/8” Pyramid	/
RUSHI Drill Pipe Power Tong ZQ 203-100/125	7/16” x 1 ¼” x 3 1/16” Blue Diamond	/
RUSHI Drill Pipe Power Tong ZQ 203-100/125	1 3/16” x 1 ¼” x 3 1/2” Blue Diamond	/
TD Tubing Power Tong XQ89/3YB XQ89/3YC	Thin	89 ( 3 ½”)
	Middle-thick	73 ( 2 7/8”)
	Extra-thick	60 ( 2 3/8”)
TD Tubing Power Tong XY114/6YB	Big arc	89-141.5(3 ½”-5 ½”)
TD Tubing Power Tong XY114/6YB	Small arc	73-78(2 7/8”)
TD Tubing Power Tong XQ140/12Y	I	73-78(2 7/8”)
	II 3/8” x 1” x 3 7/16”	89-114(3 ½”-4 ½”)
	III	121-156(4 ¾”-6 1/8”)

MANUAL TONG DIES Pyramid, Coarse, Plain, Blue Diamond tooth

Dimension: 1/2” x 1.1/4” x 5.7/8”, 1/2” x 1.1/4” x 5”, 1/2” x 1.1/4” x 3.7/8”, 3/8” x 1” x 3.7/8”

Part No.: 16402-2, 16402-6, 6416039, 4716, 627-185-1578, 16401-2, 16401-6, 16401-1, 16401, 6416020, 4631

103426, 4616, 627-185-1500, 24768-2, 101-251, 337-02-098, 6416012, 24768-8, 24768, 24770-2, 6473, 12-1003, 6400019

POWER TONG DIES Pyramid, Coarse, Plain, Blue Diamond tooth

BJ Drill Pipe Power Tong, RUSHI Drill Pipe Power Tong ZQ 203-100/125, TD Tubing Power Tong XQ89/3YB, XQ89/3YC, XY114/6YB, XQ140/12Y

Dimension: 1/2” x 1.1/4” x 3.7/8”, 7/16” x 1 ¼” x 3 1/16”, 1 3/16” x 1 ¼” x 3 1/2”

Part No.: 73-78, 89-114, 121-156, 89-141.5

INSERTS FOR ROTARY SLIPS VARCO MODEL SDS/SDML/SDXL & BAASH-ROSS MODEL DU

Slip dies or slip inserts: 2160, 2161, 2162, 2163, 2164, 2165, 2166, 2167, 2168, 2169, 2170, 7613-A-82, 7613-B-82, 7613-C-82, 7613-FF-81, 7613-A-81, 7613-E-81, 7613-E-82, 7613-G-81, 7613-H-81, 7613-Z-81, 7613-DD-81, 7613-EE-81

Circular Buttons FOR VARCO DRILL COLLAR SLIPS – DCS-S / DCS-R / DCS-L & CASING SLIPS CMS-XL

Circular Buttons: 2620, 2628, 2630, 2627, 2625, 2619, 2631, 2626

DIES FOR VARCO SAFETY CLAMP TYPE –MP, T, WA-T, C, WA-C

Safety clamp dies: 7624-A-21, 7624-A-4, 3310, and 3333

DIES FOR VARCO SAFETY CLAMP TYPE -MP				DIES FOR SAFETY CLAMP TYPE T or WA-T
Slip type	Drill pipe size	Original P/N	QTY. RED.	Slip type	Drill pipe size	Original P/N	Wt.(Kg /ea)	QTY. RED.
MP-S	2.7/8” to 4.1/8”	3333	8	Type T	1 1/8″ to 2″	7624-A-21	0.18	4
MP-S	4” to 5”	3333	9		2 1/8″ to 3 1/4″			5
MP-R	4.1/2” to 5.5/8”	3310	8		3 1/2″ to 4 1/2″			6
	5.1/2” to 7”		9	DIES FOR SAFETY CLAMP TYPE C or WA-C
	6.3/4” to 8.1/2”		10	Type C	3 3/4″ to 4 5/8″	7624-A-4	0.277	7
	8” to 9.1/4”		11		4 1/2″ to 5 5/5″			8
	9.1/4” to 10.1/2”		12		5 1/2″ to 6 5/8″			9
MP-M	10.1/2” to 11.1/2”	3310	13		6 1/2″ to 7 5/8″			10
	11.1/2” to 12.1/2”		14		7 1/2″ to 8 5/8″			11
	12.1/2” to 13.5/8”		15		8 1/2″ to 9 5/8″			12
	13.5/8” to 14.3/4”		16		9 1/2″ to 10 5/8″			13
	14.3/4” to 15.7/8”		17		10 1/2″ to 11 5/8″			14
MP-L	15.7/8” to 17”	3310	18		11 1/2″ to 12 5/8″			15
	17” to 18.1/8”		19		12 1/2″ to 13 5/8″			16
	18.1/8” to 19.3/8”		20		13 1/2″ to 14 5/8″			17
MP-XL	19.3/8” to 20.3/8”	3310	20		14 1/2″ to 15 5/8″			18
	20.3/8” to 21.1/2”		21		15 1/2″ to 17″			19
	21.1/2” to 22.5/8”		22		16 1/2″ to 18″			20
	22.5/8” to 23.3/4”		23		17 1/2″ to 19″			21
	23.3/4” to 24.7/8”		24		18 1/2″ to 20″			22
	24.7/8” to 26”		25		19 1/2″ to 21″			23
	26” to 27.1/8”		26
	29.3/8” to 30.1/4”		29

DIES FOR VARCO SAFETY CLAMP Inserts TYPE –MP, T, WA-T, C, WA-C P/N 3333 3310 Heat Treatment Alloy Steel Hardness

INSERTS FOR BJ SLIP TYPE ELEVATORS “LYT” “MYT” “YT” “HYT” “YC”

Original Part no.: 28772, 24773, 29255, 29256, 29357, 29257, 29258, 29259, 30358, 16441, 16442, BJ16408, 24781, 24779, BJ16407, 24783, 24748

FULL CIRCLE SLIP INSERTS FOR C CHD E CAVINS TUBING SPIDER

Slip Insert 3 ½” x 2 3/8”, 66651-1^ST, Slip Insert 3 ½” x 2 7/8”, 66651-2ST, Slip Insert 3 ½” x 3 1/2”, 66651-3ST, Slip Insert 5 ½” x 4 1/2”, 66653-2ST, TC-650-4 1/2” x 4 1/2”, 65653-3, TC-651-4 1/2” x 4”, 65653-2, TC-651-41/2” x 3 1/2”, 65653-1, TC-650-3 1/2” x 3 1/2”, 65625-3, TC-651-3 1/2” x 2 7/8”, 65625-2, TC-651-3 1/2” x 2 3/8”, 65625-1, TC-650-2 1/16” x 2 1/16”, TC-651-2 1/16” x 1.990”, TC-651-2 1/16” x 1.660”, TC-651-2 1/16” x 1.135
